RTS Chapel Emergency Refuge System
A dual-purpose worship facility with integrated emergency systems, reducing construction costs through strategic grant funding.
Project Overview
The Challenge
Current bidding process focuses on conventional approaches without exploring innovative funding opportunities.
Our Solution
Enhanced dual-purpose facility combining worship and emergency refuge functions. SIP construction with integrated solar power and emergency systems qualifies for federal disaster relief and infrastructure funding unavailable to traditional chapel construction.
Technical Systems
Structural Resilience
SIP panel construction rated for 200+ mph winds with integrated hurricane shutter systems and reinforced foundation design.
Energy Independence
35-50kW building-integrated solar array with battery storage providing 72+ hours of independent operation during grid failures.
Emergency Communications
Ham radio systems, satellite internet backup, and emergency broadcasting capabilities for disaster coordination.
Technical system examples and complete specifications detailed in sections below.
Precedent Examples
1,000-seat sanctuary served as emergency shelter for 78 people and pets during Hurricane Irma, with emergency generators providing power throughout the storm. Hurricane Irma Shelter Operations [1]
62,000 sq ft facility serves as community refuge center, provided 37,000 hot meals after Hurricane Ida and distributed 2 million pounds of supplies. Now equipped with solar + battery backup. Post-Hurricane Refuge Operations [2]
Churches nationwide serve as designated disaster shelters in partnership with American Red Cross, providing accessible refuges with food, shelter, and charging stations during emergencies. Church-Based Emergency Shelters [3]
Implementation Approach
Design Integration
Integrate refuge systems with existing Onxley Architecture plans while preserving sacred aesthetic
Grant Applications
Submit coordinated applications to foundation and federal funding programs
Construction
Begin construction with secured funding and finalized technical specifications
Architectural & Structural Vision
In collaboration with RTS and its architectural partners, we have refined a unified vision for a high-efficiency chapel that blends sacred-modern design with state-of-the-art construction techniques. Our shared goal is to build upon the existing architectural intent, enhancing it with systems that provide resilience and long-term value.

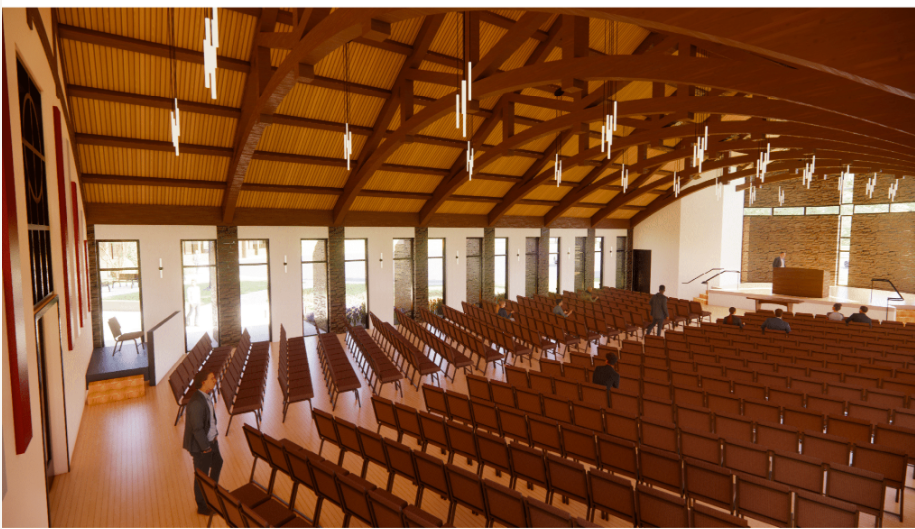

Architectural rendering of the intended sacred-modern interior with prefabricated structural arches.
I. Architectural Vision & Envelope
- Design Intent: A 400-seat sanctuary with vertical sacred symbolism and a hybrid modern-traditional aesthetic.
- Core Philosophy: Emphasis on prefabrication for quality control, efficiency, and speed of installation.
- Wall Assemblies: 6½" to 8¼" Structural Insulated Panels (SIPs) with a minimum R-26 insulation value.
- Roof Assemblies: 10¼"+ SIP roof panels (R-38+) designed to integrate seamlessly with the structural system.
- Foundation: An enhanced conditioned basement plenum that houses all mechanical systems and provides integrated storage and geothermal efficiency.
II. Key Materials & Interior Program
- Structural System: Prefabricated, architectural-grade glulam arch trusses or an approved structural equivalent.
- Exterior Finish: A combination of painted Hardie Plank vertical battens and a cultured stone veneer base.
- Interior Spaces: Sanctuary, Foyer, Pastor's Office, Nursery/Bridal Suite, and Restrooms.
- Interior Finishes: LVT flooring, porcelain tile in wet areas, and stained-grade wood finishes on exposed structural elements.
- Aesthetic Elements: Gothic-style window units and an optional prefabricated steeple.
Advanced SIP Technology for Demanding Spans
The chapel's design, with its beautiful, open sanctuary, involves long roof spans that require an advanced approach to structural integrity. To meet these demands efficiently, we utilize our patent-pending **FIRM (Fully Integrated Reinforced Modular SIP) system**. This method embeds structural reinforcement directly into the SIP core, allowing us to achieve the necessary strength for long spans without relying on bulky secondary framing, thus preserving the open, sacred aesthetic.
Further technical details and specifications for this proprietary system are available upon request.
A Note on Material Sourcing & Value Engineering
For all specified materials and systems, including the structural trusses, roofing, and finishes, we are committed to a thorough sourcing process. We will diligently research and present the best available options to ensure the final selection represents the optimal mix of aesthetic quality, long-term durability, and cost-effectiveness for RTS.
Acoustic Design Process
Acoustic Executive Summary
This chapel design treats the building structure itself as the primary acoustic system, minimizing the need for extensive sound treatments or costly electronic systems. The design process uses computational modeling to test how sound will behave in the space *before* finalizing structural details, aiming for natural sound quality appropriate to worship while leaving flexibility for targeted enhancements.
Design Process
- Computational Modeling: Test voices and music to identify issues early.
- Analysis of Building Elements: Evaluate the acoustic contribution of each component.
- Design Refinement: Adjust geometry based on modeling results.
- Professional Validation: Engage a licensed acoustician to review and validate the approach.
- Final Structural Design: Proceed with engineering after acoustic validation.
Architectural Elements with Acoustic Functions
- Basement Plenum: Acts as a large-volume bass management system.
- Variable Wall Thickness: Creates subtle sound diffusion effects.
- Decorative Grilles: Serve dual ventilation and acoustic functions.
- Steeple Base Geometry: Contributes to sound distribution.
Key Deliverables
- Design Framework: Building geometry options optimized for acoustic performance.
- Validated Specifications: Professional review and recommendations from an acoustician.
- Performance Predictions: Expected acoustic measurements (RT60, STI).
- Construction Details: Critical instructions for builders on acoustic elements.
Risk Considerations
Starting construction without this analysis risks poor speech intelligibility and the need for expensive retrofit sound systems, negating the benefits of an integrated design.
Technical Appendix & Modeling Methodology
For a detailed review of the computational models, custom algorithms, and physics principles guiding our building-integrated acoustic strategy, please download the full technical document.

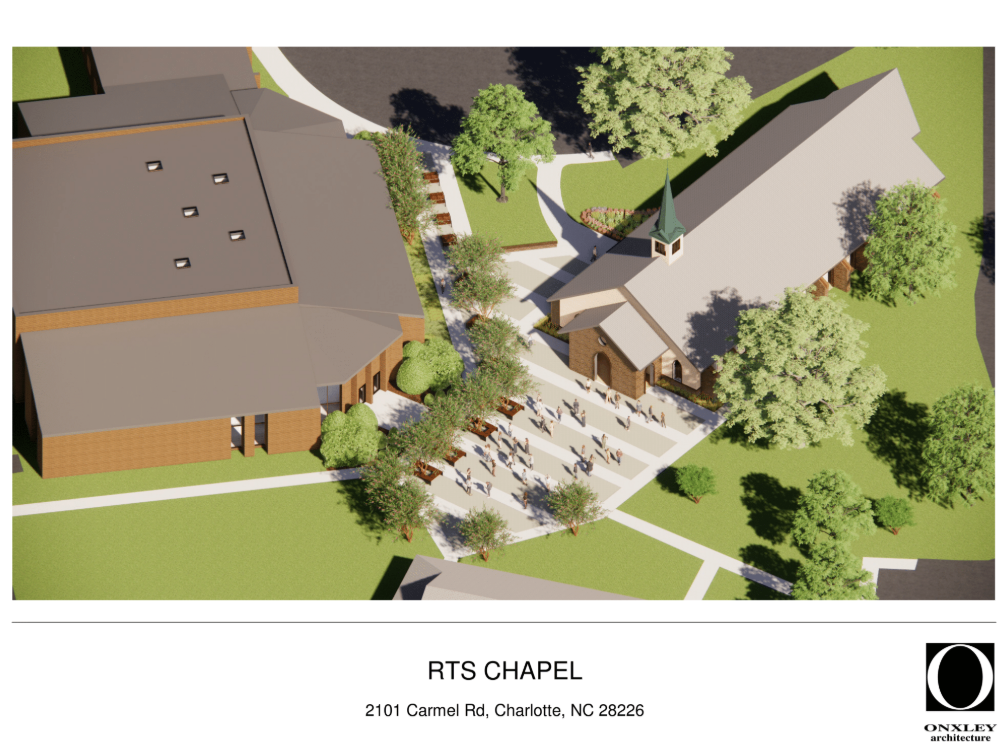

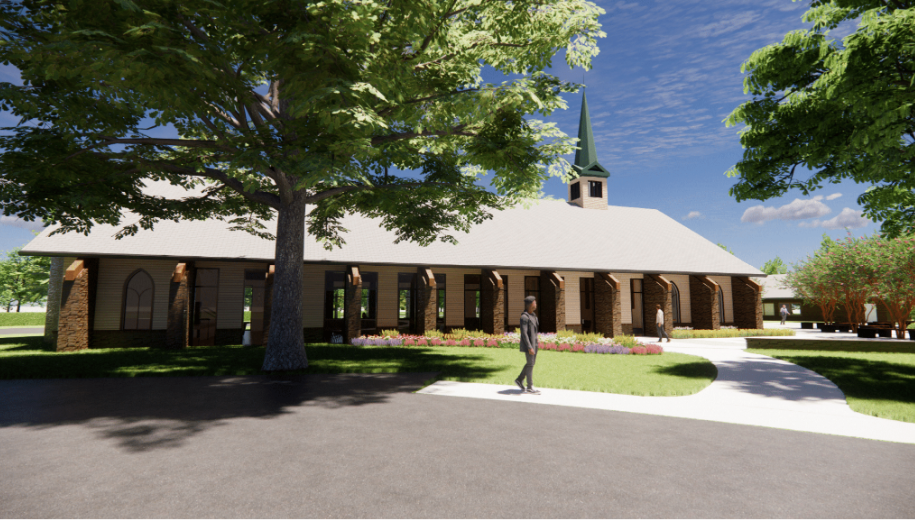

View Full Technical Document (PDF)Project Renderings Gallery

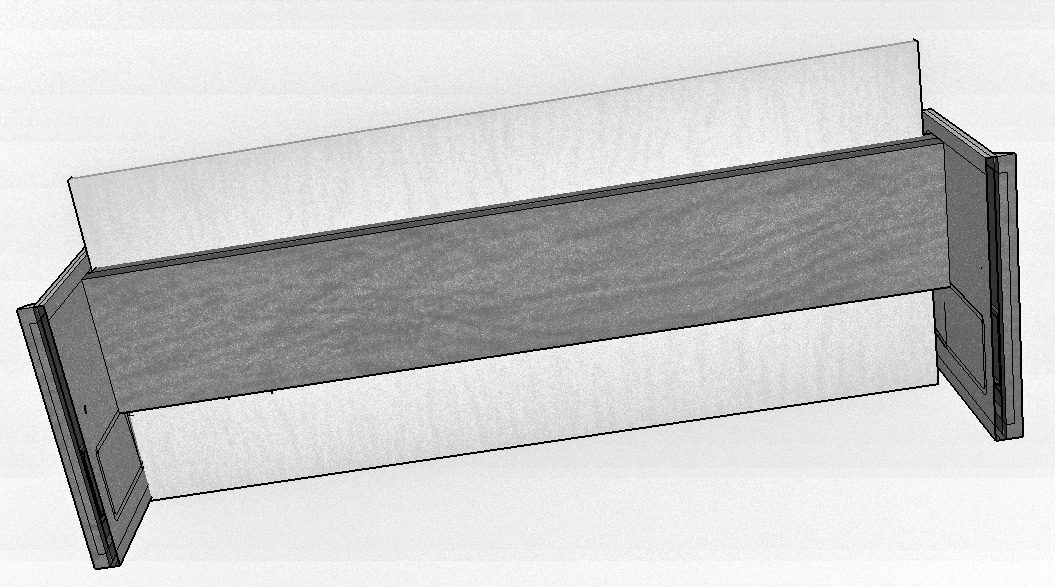

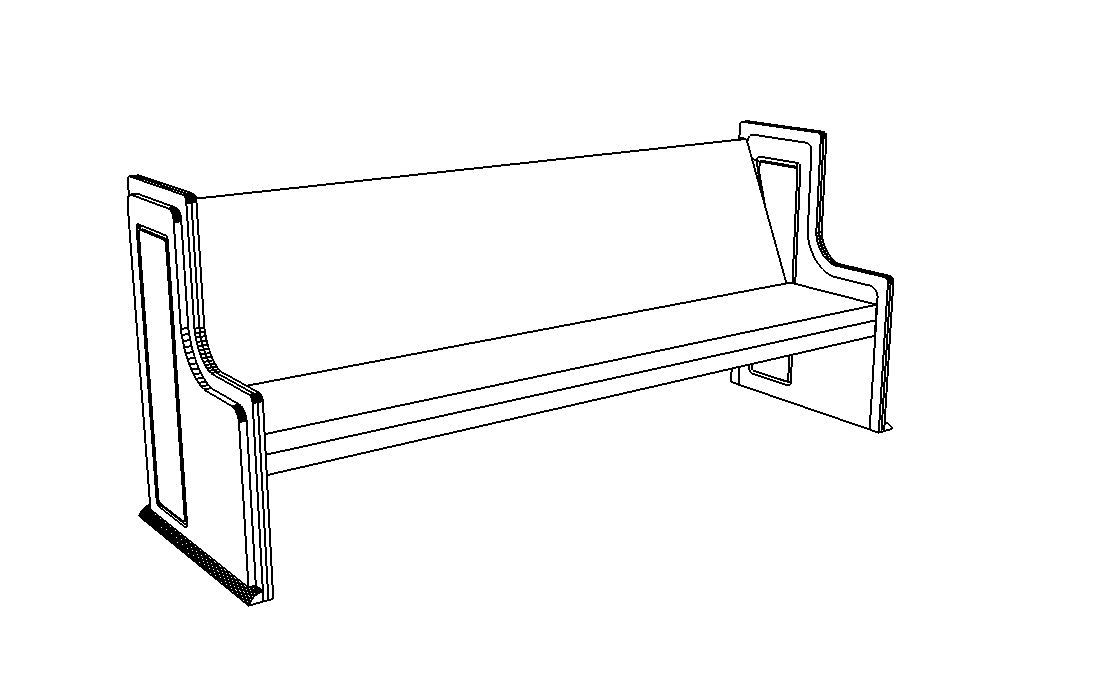

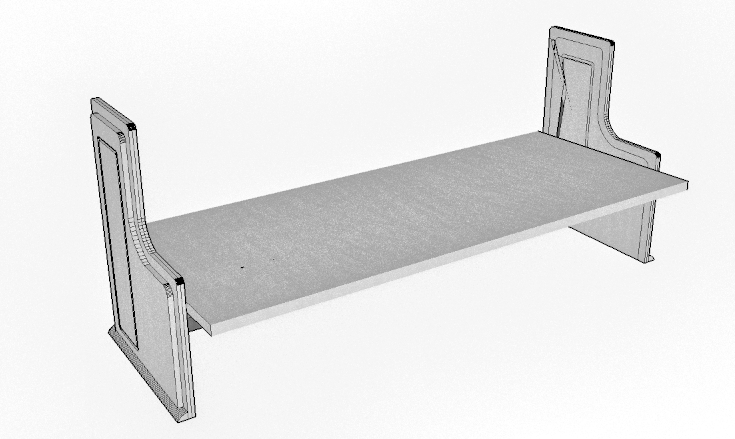

Innovation in Furnishings: The Convertible Pew
A key innovation enabling the chapel's dual-use capability is the patent-pending convertible seating system. This design allows a traditional church pew to be rapidly converted into a sleeping cot, eliminating the need for separate storage and logistics while preserving the sacred aesthetic of the sanctuary.
Core Features of the Invention
- Dual-Function Backrest: Serves as back support for seating and a platform for sleeping.
- Angle Compensation Ribs: A critical innovation that creates a level sleeping surface on an angled pew seat.
- Magnetic Security System: Prevents unauthorized conversion and requires a specific tool for professional deployment.
- Rapid Deployment: Enables conversion in under 90 seconds by trained personnel.
View the Provisional Patent Application
For a complete technical description, claims, and figures, the full provisional patent application is available for review.
View Full Patent Document (PDF)Grant Funding Strategy
Total Pipeline
$3.05M
Target Recovery
$1M – $3M
Key Sources
Solar ITC, Energy Saver NC,
ZSR, Duke, NSGP
Recovery Scenarios & Net Cost
| Scenario | Grant Recovery | Estimated Net Cost |
|---|---|---|
| Low-End | $882,000 | $2,572,727 |
| Realistic | $1,500,000 | $1,954,727 |
| High-End | $3,000,000 | $454,727 |
Net cost estimates are based on an all-in project cost of ~$3.45M, as outlined in the Executive Summary.

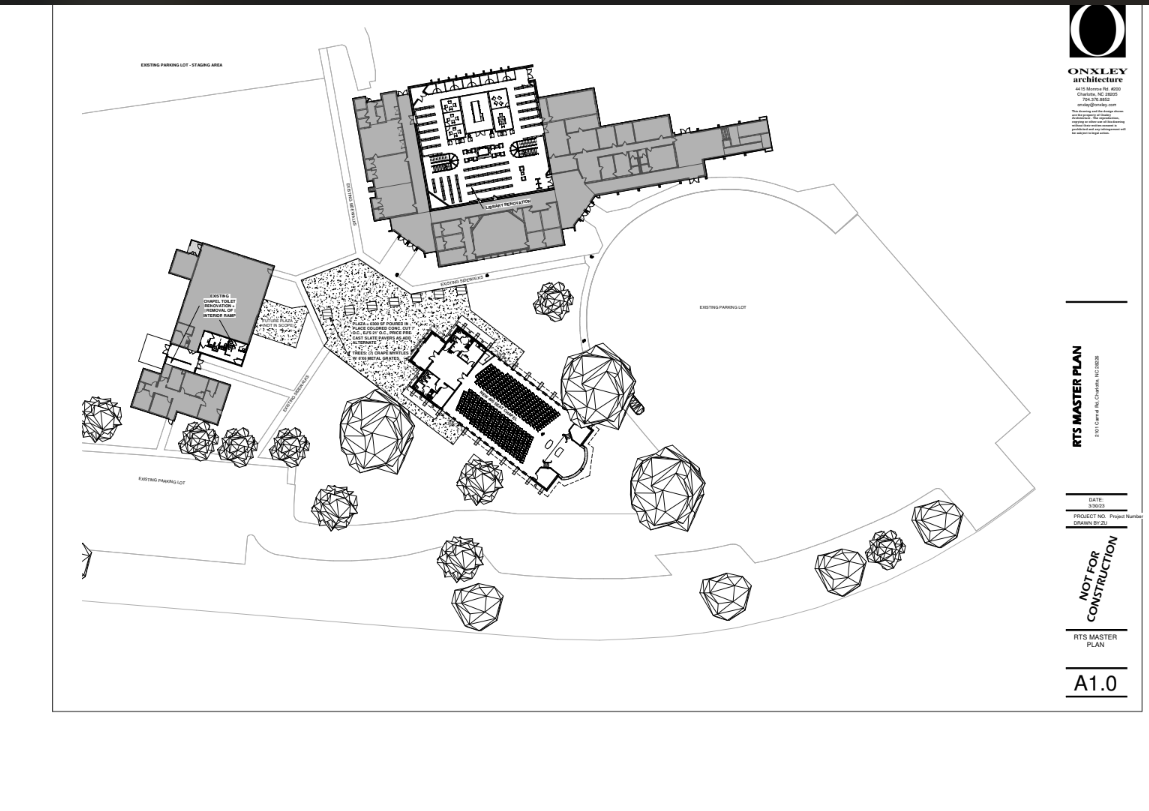

Site Analysis & Development Considerations
Property Overview
Location & Size
- Address: 2101 Carmel Rd, Charlotte, NC 28226
- Lot Size: 2.18 acres (94,961 sq ft)
- Neighborhood: Montibello Area
Current Assessment
- Property Type: Religious/Church/Worship
- Existing Building: 3,972 sq ft (built 1968)
- Assessed Land Value: $11,540,200
Zoning & Site Capacity
- Zoning Status: Requires verification with Mecklenburg County GIS.
- Current Use: Permitted as a religious facility.
- Emergency Shelter: Likely permitted as an accessory use.
- Total Area: 94,961 sq ft (2.18 acres).

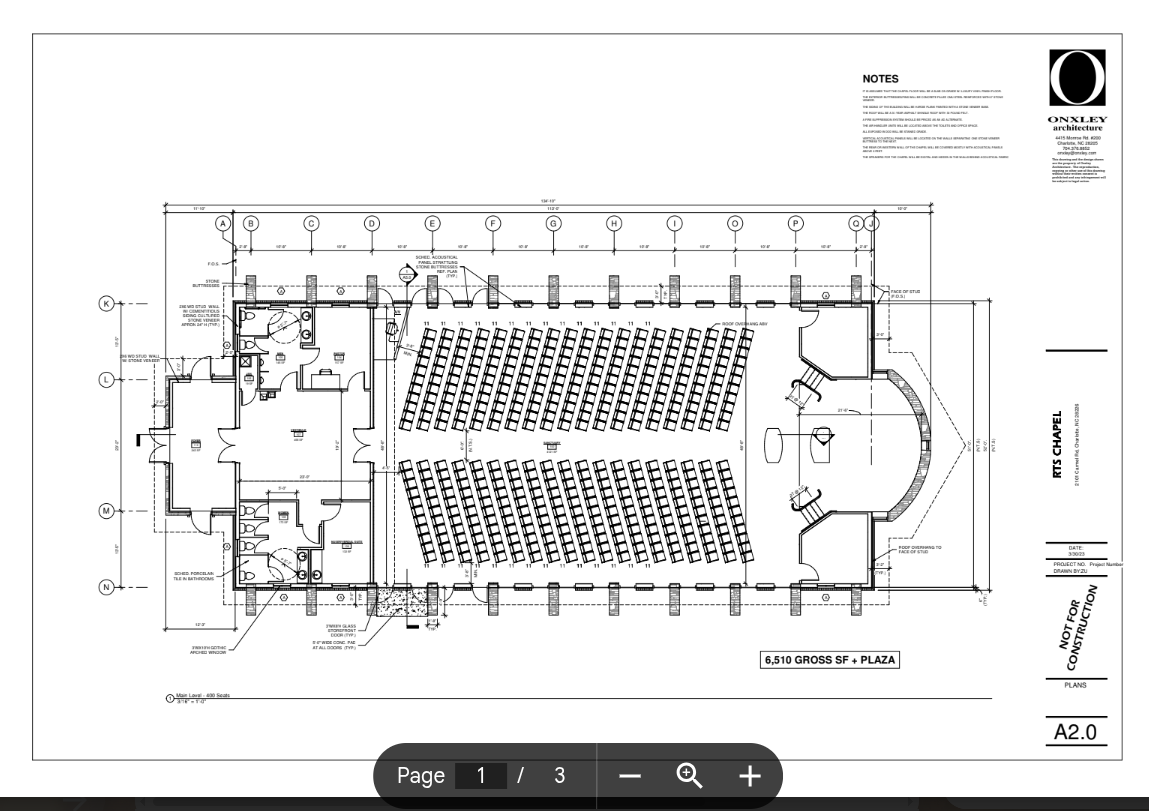

- Proposed Chapel Footprint: ~6,510 sq ft (~7% of site).
- Parking Requirement: ~100 spaces (for 400 capacity).
Site Characteristics & Value
- Underground Potential: Basement plenum is feasible and ideal for temperature-stable storage and protected mechanical systems.
- High-Value Land: The property represents a significant asset in a desirable location.
- Stewardship: The project provides an opportunity for optimal use of this valuable land.
- Future Growth: The large lot offers potential for future campus expansion.
Recommended Site Investigations
- Detailed topographic survey
- Geotechnical soil analysis
- Formal zoning verification with Mecklenburg County
- Stormwater management plan
- Utility capacity verification
- Emergency vehicle access coordination
Roofing & Integrated Solar System
The Integrated Solar Roof Concept
Rather than a traditional roof with separately mounted solar panels, this proposal integrates the solar generation directly into the roofing material itself. This approach transforms the entire chapel roof into a discreet, high-performance energy generation system that maintains the aesthetic integrity of the sacred architecture.
Recommended Technology: GAF Timberline Solar™
The GAF Timberline Solar™ shingle is the recommended solution. It is the world's first nailable solar shingle, which allows it to be installed with the same methods as a traditional asphalt shingle roof. This simplifies installation, reduces costs, and ensures a durable, weather-tight seal, all while providing significant power generation.
- Power Output: 57W per shingle from monocrystalline PERC solar cells.
- Durability: Carries a 25-year warranty and is rated for 130 mph winds.
- Installation: Nailable design allows for installation by any GAF-certified roofer.
- Aesthetics: Blends seamlessly with traditional asphalt shingles for a uniform look.
The integrated solar roof maintains the chapel's traditional aesthetic.
Power Generation Potential for RTS Chapel
Chapel Roof Area: Approximately 6,510 sq ft
Estimated Usable Solar Area: ~5,500 sq ft
GAF Timberline Solar Scenario
- System Capacity: ~1,100 shingles × 57W = ~63 kW system
- Annual Production: ~82,000 - 95,000 kWh
- Emergency Power: 48+ hours of independence (with compatible battery storage).
- Potential: Can cover all chapel operations plus provide significant emergency reserve capacity.
Note: These are preliminary estimates. A professional solar assessment is required for a final, precise projection.
Implementation & Partnership
In line with RTS's vendor selection, we will partner with dGEN Energy Partners, a specialist in commercial and industrial solar, to oversee the system design and ensure a seamless, professional installation. This collaboration ensures that the project benefits from deep industry expertise in both roofing and solar energy systems.
HVAC + Plenum Systems
Advanced Conditioned Plenum with Geothermal Integration
The conditioned basement plenum leverages North Carolina's consistent ground temperatures (45-55°F) to provide highly efficient climate control. This system combines centuries-old root cellar technology with modern geothermal engineering, dramatically reducing both heating and cooling loads by using the earth's stable temperature as a starting point.
🌡️ Geothermal Efficiency
- Reduces annual HVAC energy costs by 50-70%.
- Leverages stable ground temperatures for both heating and cooling.
- Significantly smaller HVAC equipment required (36% load reduction).
- Qualifies for substantial energy efficiency grants and incentives.
🔇 Ultra-Quiet Operation
- All mechanical equipment is housed in the isolated basement plenum.
- Oversized plenum allows for ultra-low air velocity, eliminating noise.
- Engineered for a target noise level of <25 dB (inaudible library quiet).
- Vibration isolation prevents sound transmission through the structure.
🛡️ Emergency Reliability
- Maintains a livable 50-60°F comfort zone even during a power outage.
- Protects generators and batteries in a secure, conditioned space.
- Provides ideal cool-storage conditions for emergency food and water.
- Reduced power load allows for longer runtime on emergency generators.
A Proven, Reliable Technology
Underground plenum and earth tube systems are not experimental; they are proven technologies used in high-performance commercial buildings worldwide, including the EPCOR Tower in Edmonton and the LEED Platinum certified Earth Rangers Centre in Toronto, to achieve significant, long-term energy savings.
System Monitoring & Partnership
To ensure optimal performance and long-term reliability, the HVAC and plenum systems will be tied into a comprehensive Building Automation System (BAS). We will coordinate with the RTS-selected energy partner, "Power of Clean Energy", to integrate the geothermal system's monitoring data, providing real-time insights into energy savings and predictive maintenance alerts.
24V DC Lighting Systems
Marine-Grade 24V DC LED Lighting
24V DC lighting systems are proven technology in recreational vehicles, boats, and off-grid applications where safety, efficiency, and reliability are paramount. Churches should embrace this technology for its superior safety profile, reduced electrical requirements, and exceptional emergency performance capabilities.
Key Advantages
- Ultra-safe: Eliminates electrocution risk
- No licensed electrician required for maintenance
- 50% more efficient than 12V systems
- Seamless battery backup integration
- Smaller, more aesthetic fixtures
24V DC Lighting System
Marine-grade safety and efficiency
Why 24V DC is Superior for Churches
🛡️ Ultimate Safety
No Electrocution Risk: 24V cannot cause harmful shock
Safe for children, elderly, and wet conditions
Fire Safety: Dramatically reduced fire risk
Low voltage minimizes arc and spark potential
Water Safe: System won't short circuit in water
Essential for baptismal areas and emergency use
🔧 Installation Advantages
No Licensed Electrician Required: For maintenance and modifications
Church volunteers can safely work on system
No Conduit Required: Simplified installation
Class 2 wiring doesn't need junction boxes
Easier Maintenance: Less disruptive to occupants
Repairs during services if needed
⚡ Technical Efficiency: 24V vs 12V
12V System Efficiency:
Only 75% of electrical energy used for light
25% wasted as heat in resistors
24V System Efficiency:
88% of electrical energy used for light
Only 12% wasted as heat
The Result:
**50% reduction in electrical waste**
Lower current draw, thinner wires needed
Proven Applications & Examples
🚢 Marine & RV Industries
Boats and RVs have used 24V DC lighting for decades because of harsh conditions and safety requirements:
- **Watt-a-Light Marine Systems:** Complete 24V lighting for boats with "More Light, Less Watts"
- **CLEANLIFE Systems:** Residential 24V DC systems converting entire homes
- **Marine flood lights:** 10W producing 1,150 lumens for security lighting
- **Tube lighting:** 4-foot T8 LED replacements at 24V DC
🏢 Commercial Applications
Low voltage lighting is becoming standard in many commercial settings:
- **Landscape lighting:** 12V/24V systems standard for outdoor applications
- **Power over Ethernet (PoE):** Hospitality industry adopting for efficiency
- **Security systems:** All surveillance and access control uses low voltage
- **Smart buildings:** IoT devices require low voltage infrastructure
Industry Reality: If 24V DC is safe enough for boats in salt water and RVs on the road, it's certainly appropriate for churches. The technology is mature, reliable, and proven in demanding environments.
Emergency Power Integration
🔋 Seamless Battery Backup
- Direct DC Connection: No inverter losses - batteries directly power lights
- Extended Runtime: 24V systems draw half the current of 12V
- Solar Integration: Solar panels naturally produce DC power
- Emergency Duration: Hours instead of minutes of backup lighting
⚡ Power Efficiency Benefits
- Lower Current Draw: 24V draws half the amps of 12V for same power
- Thinner Wiring: Reduced copper requirements and installation costs
- Voltage Drop Resistance: Better performance over long runs
- Heat Reduction: Less waste heat means cooler operation
Design and Aesthetic Advantages
✨ Beautiful, Smaller Fixtures
24V LED fixtures are dramatically smaller than 120V equivalents because they don't need bulky transformers, heat sinks, or large lamp housings. This enables:
- Hidden fixtures that don't distract from architecture
- Delicate pendant lights and chandeliers previously impossible
- Recessed lighting with minimal ceiling penetration
- Flexible strip lighting for indirect illumination
🎨 Design Flexibility
Low voltage systems offer superior design options:
- Precise dimming and color control
- Easy relocation of fixtures without electrician
- Creative lighting arrangements not possible with 120V
- Integration with smart building systems
💡 Light Quality and Performance
Equivalent Lumens, Superior Efficiency
Modern 24V LED systems produce identical light output to traditional systems:
- 7W LED = 1,000+ lumens (equivalent to 60W incandescent)
- 20W flood light = 2,200+ lumens for security lighting
- 4-foot tube = 2,400+ lumens for general illumination
🌈 Superior Color Quality
LED technology provides better color rendering than traditional church lighting, with CRI >80 and options from warm 2700K to daylight 5000K.
⏱️ Exceptional Longevity
50,000+ hour lifespan means 25+ years of typical church use with minimal maintenance - perfect for hard-to-reach cathedral ceilings.
Light Quality Comparison
24V LED vs Traditional Lighting
24V LED Performance
24V DC System Components
🔌 Power Supply and Distribution
- Central 24V DC power supplies with battery backup
- Individual zone control for flexible lighting scenes
- Smart dimming controls compatible with building automation
- Emergency battery systems with automatic switchover
- Solar panel integration for daytime charging
💡 Fixture and Control Options
- Recessed ceiling fixtures (3W-15W range)
- Pendant and chandelier-style fixtures
- Linear strip lighting for indirect illumination
- Flood lights for exterior and security applications
- Smart controls with smartphone app integration
Implementation and Code Compliance
Code Compliance
UL Listed Class 2 systems meet NEC requirements for low voltage installations
Installation Flexibility
No conduit required, easier scheduling, volunteer-friendly maintenance
Future-Proof Design
Compatible with smart building systems and renewable energy integration
Integrated Power Systems
Energy Independence Through Cumulative Efficiency
Our integrated approach combines the GAF solar roof, battery storage, and a backup generator with the inherent efficiencies of 24V DC lighting and the geothermal plenum. Each efficiency compounds upon the others, dramatically reducing the building's overall power requirements and enabling complete energy independence during emergencies.
☀️ Solar Power Generation
- The GAF Timberline Solar™ roof provides a ~63 kW generation system.
- Produces 82,000-95,000 kWh annually, covering all chapel energy needs.
- Excess power is sold back to the grid, creating an ongoing revenue stream via net metering.
🔋 Battery Storage
- Provides 48-72+ hours of power for critical systems during an outage.
- 24V lighting connects directly to batteries, eliminating DC-to-AC conversion losses.
- Reduced building loads allow for a smaller, more cost-effective battery system.
⚙️ Generator Backup
- Generator is housed in the secure, sound-isolated, and conditioned basement plenum.
- Reduced electrical loads enable a smaller, more fuel-efficient generator.
- Provides long-term power for extended outages when solar generation may be limited.
Calculated Power Savings
The cumulative effect of these integrated systems results in a ~36% reduction in the building's peak electrical demand compared to a traditional design.
Amperage Reduction
215-230 amps less
Annual Cost Savings
$6,220 – $6,680
Peak Demand Reduction
51-54 kW less
This reduced demand allows for smaller transformers, thinner wiring, and right-sized backup systems, creating substantial infrastructure cost savings.
Water + Plumbing
Dual-System Water & Waste Management
Municipal utilities serve daily operations with robust emergency backup systems providing 72+ hour independence during disasters. Private well and large-scale holding tank technology ensures continuous water supply and waste management for 100-150+ emergency shelter occupants.
System Advantages
- Municipal reliability with emergency independence
- Proven holding tank technology (like cruise ships/RV parks)
- FEMA-compliant shower facilities
- Gas-fired emergency hot water (power-outage ready)
Emergency Capacity
💧 Water Supply Systems
Primary: Charlotte Water Municipal
Service: 2101 Carmel Rd, Charlotte, NC 28226
Contact: (704) 336-7600
Use: Daily operations, worship services
Emergency: Private Well + Storage
Storage: 1,500+ gallon basement tank
Capacity: 72+ hours for 100-150+ people
Switching: Automatic when municipal fails
💡 Emergency Water Calculations
Recommended: 1,500+ gallon capacity for safety margin
🚽 Waste Management Systems
Primary: Municipal Sewer
Service: Daily waste management
Verification: Confirm availability at address
Use: Normal operations
Emergency: Underground Holding Tank
Size: 12,000-15,000 gallon capacity
Operation: Valve-switched during emergencies
Service: Professional pump-out as needed
🌍 Proven Technology Applications
💰 Estimated Investment
Pump-Out Service: $300-500 per service (as needed)
Monitoring Equipment: $2,000-5,000
Significantly less than full septic system design/permitting
🚿 Bathroom Facilities
📋 FEMA Standards Compliance
ADA Requirement: 1 out of every 6 showers must be handicap accessible
For 100-150 people: 4-6 showers required (1 ADA minimum)
Proposed Design: 4 showers (2 regular + 2 handicap) - meets baseline and exceeds ADA requirements
2 Regular Showers
2 Handicap Showers
🔥 Hot Water Systems
⚡ Daily Use: Tankless System
- 2-3 electric tankless units
- On-demand heating efficiency
- Adequate for worship/meeting use
- Basement plenum location
🔥 Emergency: Large Gas Tank
- 500+ gallon gas-fired heater
- Natural gas or propane fuel
- Functions during power outages
- Hot water for 100-150+ people
🔗 System Integration
Emergency Mode: Large gas tank provides high-capacity hot water
Integration: Water storage systems coordinate with basement plenum design detailed in HVAC + Plenum Systems
🔧 Maintenance & Next Steps
Annual Requirements
- Well water quality testing
- Holding tank inspection
- Gas system safety check
- Emergency switching test
- Code compliance review
Immediate Next Steps
- Call Charlotte Water (704) 336-7600
- Well placement site survey
- Holding tank sizing/location
- Mecklenburg County permits
- Emergency switching design
Food + Refrigeration
Dual-Approach Food Service Strategy
Emergency-first design using shelf-stable MREs (Meals Ready-to-Eat) stored in the temperature-controlled basement plenum, combined with a modest kitchen facility for daily operations, events, and extended shelter periods. System prioritizes reliability and simplicity while meeting FEMA emergency feeding standards.
System Advantages
- MREs require no refrigeration or complex preparation
- Basement plenum provides ideal cool storage conditions
- Modest kitchen supports daily use and events
- Medical refrigeration for essential medications
Emergency Food Capacity
🥫 Emergency Food Storage (Primary Strategy)
MRE (Meals Ready-to-Eat) Storage System
Storage Requirements
- Quantity: 100-150 people × 3 days = 300-450 HDRs (Humanitarian Daily Rations)
- Location: Basement plenum (55-65°F ideal)
- Packaging: Each HDR = full day's food supply (2,200+ calories)
- Rotation: 3-year shelf life, annual inspection
HDR Advantages
- Used by FEMA in actual disasters
- No cooking/preparation needed
- One HDR = complete daily nutrition
- Acceptable to diverse religious/dietary groups
- Cost ~$6-8 each (vs $15+ for military MREs)
- Air-drop survivable packaging
FEMA Official Standards
📊 Storage Space Calculations
Storage space needed: ~80-120 cubic feet (basement plenum ideal)
Cost estimate: $1,800-3,600 for complete 72-hour supply
Annual replacement: ~33% rotation = $600-1,200/year
🍳 Modest Kitchen Facility (Secondary/Event Use)
Extended Break Room / Event Kitchen
Equipment & Layout
- Refrigerator: Commercial-grade for staff/medicines
- Induction cooktops: Energy-efficient, no gas required
- Convection oven: Lower power consumption
- Microwave: Quick heating for staff meals
- Prep counter: Sandwich making, basic food prep
- Storage cabinets: Utensils, plates, basic supplies
Ventilation Design
- Basement location: Isolated from worship space
- Exhaust system: Direct exterior venting
- Air filtration: Prevent odors reaching sanctuary
- Separate HVAC zone: Independent climate control
- Fire suppression: Kitchen-grade safety systems
Multi-Purpose Use Cases
Events: Wedding receptions, church dinners, community meals
Emergency Extended: Hot meal preparation when MRE supplies run low
Recovery: Meal prep for disaster relief workers and volunteers
⚡ Kitchen Power Requirements
Convection oven: 5kW (240V) - faster cooking, lower power than standard
Refrigerator: 2kW (120V) - continuous operation essential
Total peak load: ~10.5kW (manageable with solar + battery backup)
💊 Medical Refrigeration
Essential Medication Storage
Requirements
- Temperature: 36-46°F (2-8°C) precise control
- Backup power: Battery/generator backup essential
- Monitoring: Temperature alarms and logging
- Security: Locked storage for controlled substances
- Capacity: Insulin, emergency medications for 100-150+ people
Equipment Options
- Pharmaceutical refrigerator: Medical-grade unit
- Dual power: AC power + DC battery backup
- Digital monitoring: WiFi alerts for temperature
- Separate from food storage: Contamination prevention
- Cost: $2,000-5,000 for proper medical unit
🛡️ Food Safety & Compliance
Health Department Compliance
- Mecklenburg County health permits
- Commercial kitchen standards (if cooking)
- Food handler certifications
- Regular inspections
- HACCP protocols for events
Emergency Food Standards
- FEMA emergency feeding guidelines
- Red Cross shelter food requirements
- Dietary accommodation planning
- Food allergy management
- Special needs (diabetic, etc.)
🏗️ Storage Integration with Building Systems
Basement Plenum Food Storage Zone
Temperature Control
Humidity Control
Pest Prevention
💰 Implementation & Cost Analysis
Phase 1: Emergency Food System
- HDR inventory: $1,800-3,600
- Storage shelving: $1,000-2,000
- Medical refrigerator: $2,000-5,000
- Total Phase 1: $4,800-10,600
Phase 2: Kitchen Facility (Optional)
- Kitchen equipment: $15,000-25,000
- Ventilation system: $10,000-15,000
- Plumbing/electrical: $8,000-12,000
- Total Phase 2: $33,000-52,000
🎯 Implementation Priorities
Immediate Actions
- Design basement food storage zones
- Source HDRs (not military MREs) from FEMA suppliers
- Research medical refrigeration options
- Contact Mecklenburg County Health Dept
Future Considerations
- Kitchen facility design and permits
- Ventilation engineering
- Commercial equipment selection
- Staff training and certifications
Communications
Multi-Function Steeple Integration
The traditional steeple serves four critical functions: symbolic representation pointing toward Heaven, air exhaust system for HVAC and kitchen ventilation, emergency ham radio communications for worldwide reach, and internet connectivity hub for cost-effective campus networking. This integrated design maximizes the iconic church architecture while providing essential emergency communication capabilities.
Steeple Functions
- Symbolic: Traditional church architecture pointing toward Heaven
- Ventilation: Air exhaust for kitchen, restrooms, and HVAC systems
- Ham Radio: Dual antennas for emergency worldwide communications
- Internet: Line-of-sight networking to reduce commercial internet costs
Multi-Use Design
🌬️ Steeple Ventilation System
Natural Stack Effect Ventilation
Exhaust Applications
- Kitchen ventilation: Cooking odors and grease exhaust
- Restroom exhaust: Bathroom ventilation systems
- HVAC overflow: Excess air pressure relief
- Emergency ventilation: Smoke evacuation during fires
- Basement plenum: Humidity and air quality control
System Advantages
- Natural stack effect - no power required
- Quiet operation (no exhaust fans)
- Energy efficient ventilation
- Multiple exhaust zones in one structure
- Weather protection for vent terminations
🏗️ Technical Implementation
Multiple Ducts: Separate exhaust runs for kitchen, restrooms, HVAC zones
Damper Control: Automatic and manual dampers for flow control
Weather Protection: Steeple design shields exhaust terminations
📡 Emergency Ham Radio System
Dual Antenna Ham Radio Setup
Antenna Configuration
- Primary Antenna: HF (3-30 MHz) for worldwide communications
- Secondary Antenna: VHF/UHF (144/440 MHz) for local emergency nets
- Installation: Concealed within steeple structure
- Lightning Protection: Proper grounding and surge protection
- Coax Runs: Direct routes to basement radio room
Emergency Capabilities
- Worldwide reach: HF propagation for international contact
- Local coordination: VHF/UHF for area emergency services
- Independent operation: Battery and generator powered
- Emergency nets: Connection to disaster relief networks
- Backup internet: Winlink email over radio
📻 Ham Radio Emergency Networks
Salvation Army SATERN: Disaster relief communications
Red Cross: Emergency shelter and health/welfare traffic
Winlink: Email over radio when internet fails
🌐 Internet & Campus Networking
Line-of-Sight Network Hub
Connectivity Strategy
- Primary Internet: Business fiber connection to steeple
- Wireless Distribution: Point-to-point links across campus
- Line-of-Sight Range: 5+ mile wireless networking capability
- Backup Internet: Cellular and satellite connections
- Cost Savings: Eliminate multiple business internet lines
Technical Implementation
- Point-to-Point Radios: 5.8 GHz or 60 GHz links
- High-Gain Antennas: Directional antennas for distance
- Redundant Paths: Multiple routes for reliability
- Network Switching: Managed switches in steeple
- Remote Monitoring: Network health monitoring
💰 Cost Benefits
Wireless Distribution: Eliminate monthly costs for remote buildings
Scalable Bandwidth: Share bandwidth across all campus locations
Estimated Savings: $500-2,000/month depending on campus size
⚙️ Steeple Technical Integration
Structural Design
- Internal Conduits: Planned cable runs during construction
- Equipment Platforms: Mounting points for antennas
- Access Hatches: Service access for maintenance
- Ventilation Shafts: Separate ductwork routing
- Weather Sealing: Protection for all penetrations
Power & Control Systems
- Dedicated Circuits: Separate power for radio equipment
- UPS Systems: Battery backup for communications
- Lightning Protection: Surge suppressors and grounding
- Remote Control: Equipment operated from basement
- Monitoring Systems: Equipment health and performance
🏠 Basement Communications Center
Equipment Location & Layout
Ham Radio Station
• Antenna tuners and switches
• Emergency power supplies
• Computer for digital modes
Network Equipment
• Wireless point-to-point radios
• Internet gateway and firewall
• Network monitoring systems
HVAC Control
• Fan speed controllers
• Temperature monitoring
• Emergency override systems
🏗️ Integration with Plenum Systems
📋 Licensing & Compliance
Ham Radio Requirements
- FCC License: Extra Class recommended for full privileges
- Station License: Club station callsign for the chapel
- Emergency Coordinator: ARES/RACES registration
- Insurance: Equipment coverage and liability
- Testing: Annual equipment and antenna testing
Network & Building Compliance
- Building Permits: Antenna and equipment installation
- Zoning Compliance: Antenna height and placement
- FCC Part 101: Point-to-point radio licensing
- Fire Code: Equipment room ventilation and safety
- Electrical Code: Grounding and surge protection
💰 Investment & ROI Analysis
Initial Investment
- Ham Radio Equipment: $15,000-25,000
- Antennas & Installation: $5,000-10,000
- Network Equipment: $10,000-20,000
- Steeple Integration: $8,000-15,000
- Total System: $38,000-70,000
Return on Investment
- Internet Savings: $6,000-24,000/year
- HVAC Efficiency: $2,000-5,000/year
- Emergency Capability: Priceless community service
- Payback Period: 2-4 years from internet savings alone
- Grant Eligibility: Emergency communications funding
🎯 Implementation Roadmap
Design Phase
- Steeple structural analysis for antenna loads
- RF propagation study for coverage areas
- Network topology design and equipment specs
- Ventilation duct routing and sizing
Implementation Phase
- FCC licensing and permit applications
- Equipment procurement and staging
- Coordinated installation during construction
- Testing, commissioning, and training
